FIlter Press Keeping on Upgrading

What is a Filter Press?

Filter press is a piece of equipment used in liquid/solid separation. Specifically, the filter press separates the liquids and solids using pressure filtration, wherein a slurry is pumped into the filter press and is dewatered under pressure. Basically, each filter press is designed based on the volume and type of slurry that needs to be dewatered.  Henan Real Machinery Co.,Ltd is a trusted expert in liquid/solid separation and offers a wide range of filter press types and capacities to suit specific application needs for trouble-free, economical dewatering. These include configurations such as sidebar automatic, manual overhead, automatic dual overhead beam, stainless steel clad, explosion-proof filter presses, vacuum filter presses, and hand filter presses.

Next picture is a cartoon. Our Ancestors' made the Prototype filter press.

The four main components of a filter press include the frame, filter plates, manifold (piping and valves), and filter cloth, a key ingredient for optimizing filter press operations.

How Does a Filter Press Work?

The working principle of filter presses is that slurry is pumped into the machine such that solids are distributed evenly during the fill cycle. Solids build up on the filter cloth, forming the filter cake; the filtrate exits the filter plates through the corner ports into the manifold, yielding clean filtered water.

Filter presses are a pressure filtration method and as such, as the filter press feed pump builds pressure, solids build within the chambers until they are completely chock-full of solids, forming the cake. Once the chambers are full, the cycle is complete and the filter cakes are ready to be released. In many higher capacity filter presses, fast action automatic plate shifters are employed, speeding cycle time. Some filter presses are specifically designed for fully automatic, 24-hour operation in a harsh environment such as mines or chemical manufacturing plants.

Our Technical Advantage in the world

The material of Henan Real  Filter Press frame is Q345B, which tensile strength is 1.4 times of Q235, it makes filter press can be operate more safe and stable

The oil cylinder seat, pressing plate and thrust plate are formed by carbon dioxide protection welding

The main beam of Henan Real filter press is designed by adopting welded box construction, and manufactured by making use of submerged arc auto welding technology

All the spare parts that need painted are dealed with high speed centrifugal ball blast descaling and iron scale. After painting MIO epoxy build primer, paint acrylic polyurethane coating directly to make it have the best adhesion. It can save hundreds tons of putty every year, thus not only reduce the cost, but also protect the environment. More important, it improves the adhesion of the paint and antisepsis class of the filter press.

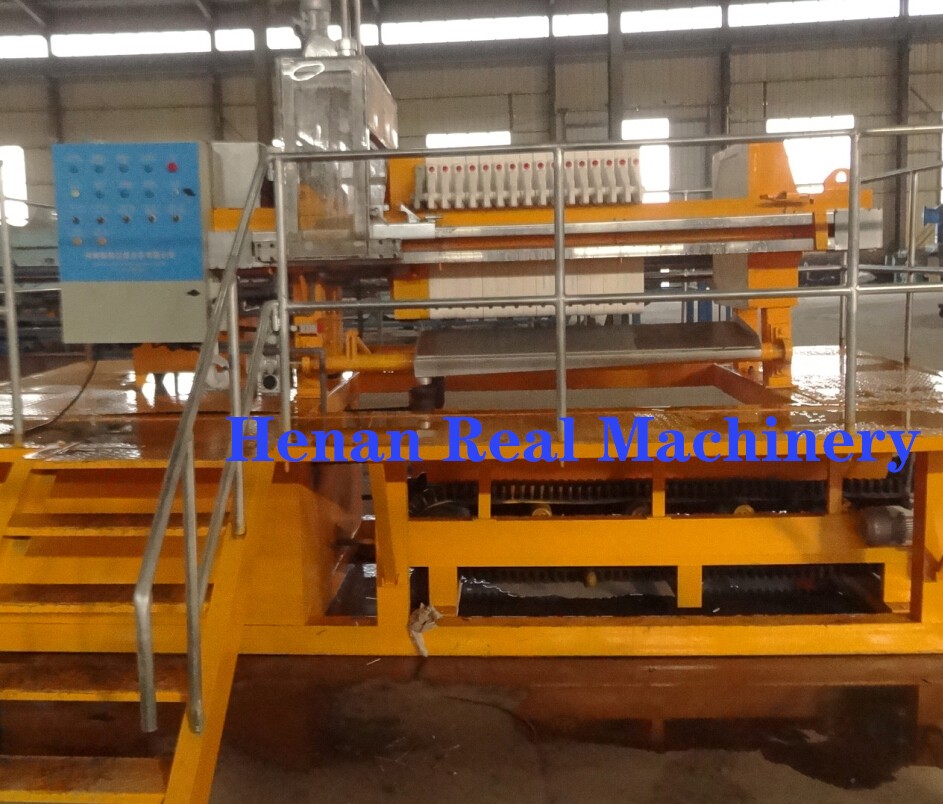

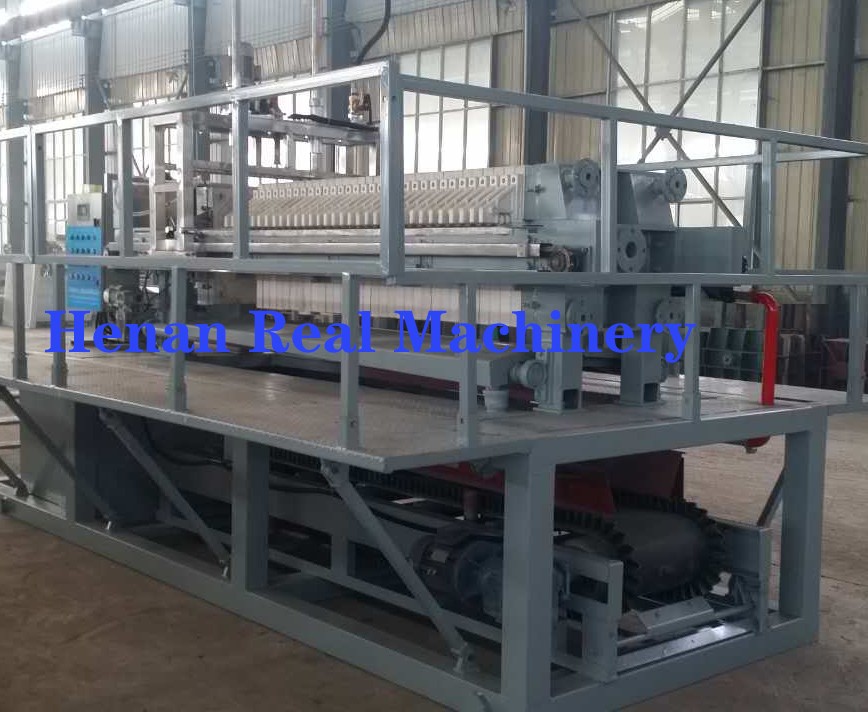

Compact Filter Press Filtering Platform

It is with auto compression, auto pull-plate system, auto bomb door, auto washing cloth, belt conveyor,waster-squeezing(or air -squeezing),working plant. Need only one worker to do inspection work.

1.Auto pull-plate system is to open the plates to discharge the filtered cake automatically.

2.Belt conveyor is to transport  the cake away.

3.Auto washing is to wash the filter cloth and filter plates.

4.Bomb door is also called drip tray.

5.Working plant is   the plant to assemble all the equipments.

The plant also can be transported away by a truck,. so if the owner needs to move the filter press to anywhere , just hire a truck.

In the world, only we make the smallest type full auto filter press plant Type 630 , and 700.

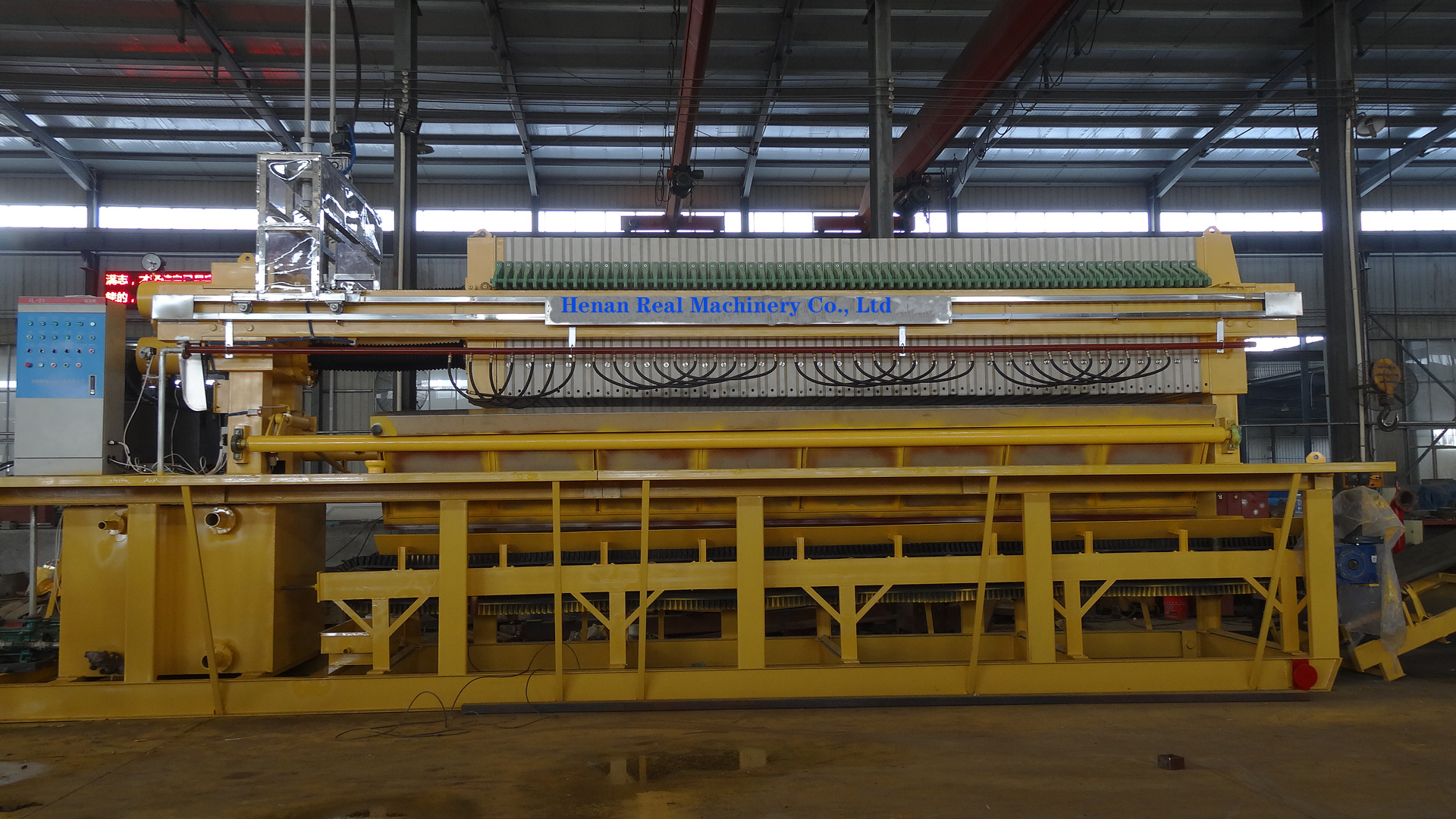

Upgraded to Giant Filter Press Filtering-Platform

And We Still Keep on Upgrading
