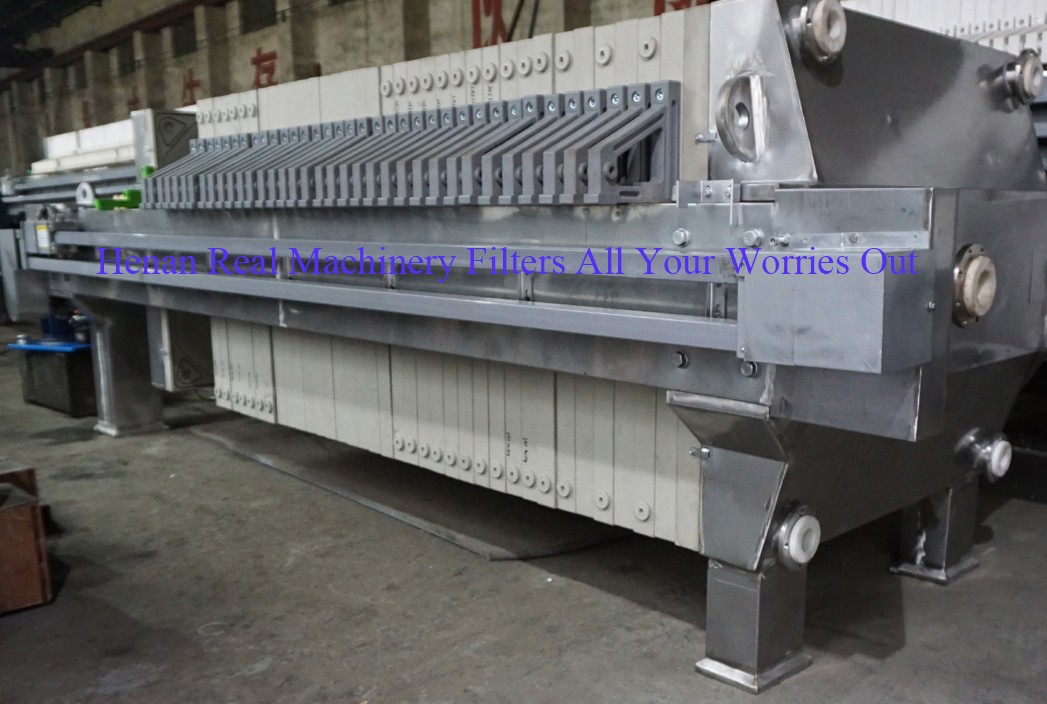

Auto Chamber Filter Press

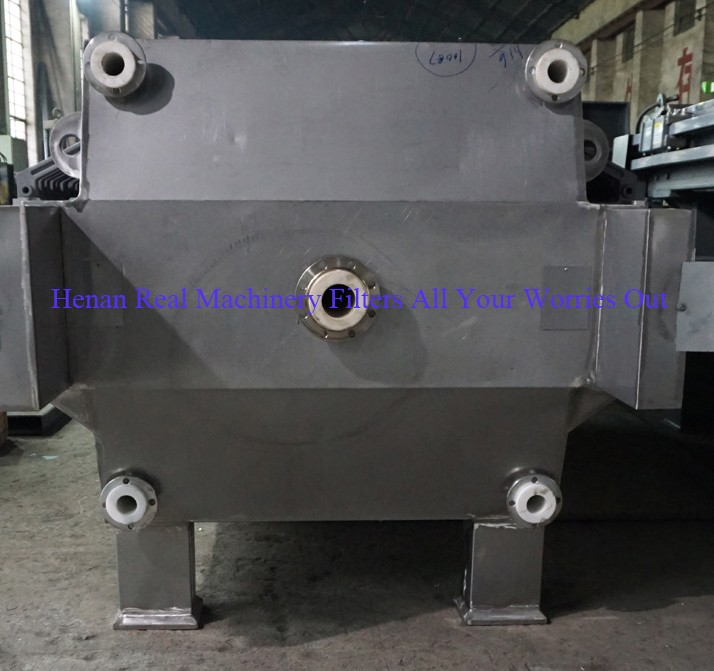

Automatic chamber filter press machine is an ideal equipment for solid-liquid separation in many industry, such as wastewater treatment, mining industry, chemical industry, food industry etc. Frame of Filter Press is cladding with SS316.
The automatic function include automatic compression, automatic pressure keeping, automatic plate shifting, automatic cake discharging, automatic flip etc.
Simple operation, high working efficiency.

EMAIL

Features

1Automatic functions includes automatic compression plate, automatic pressure keeping, automatic plate shifting, automatic cake discharging, automatic flip.



2Automatic plate shifting system is auxiliary function for cake discharging, after finish filtration, this device can automatically pull plates and cake discharging, it not only improve the efficiency of the filter and reduces the labor intensity, but also can reduce the filter caused by human factors board irregulararrangement.



3Adding the automatic flip device, receiving the dripped liquid, prevent the liquid flowing everywhere.



4The main material of frame is carbon steel:Q235, beams with rectangular tube seamless welding, special frame deformation, strong and durable.



5Filter plates is made of pure PP, do not contain other filler. not recycled material, high strength, light weight, corrosion resistance, acid and alkali, non-toxic and tasteless. There have different filter plate for different working conditions, for example, normal working temperature(15-65C), high temperature resistant filter plate(65-85C), high working pressure filter plate(<1.0Mpa) etc.



6Various kinds of chamber filter press machine filter cloth which suit for different kinds of material, improving the filtering accuracy.



7There have two the filtration discharging way for choice, open type outlet(with water faucet) and close type outlet.



Introduction

Automatic chamber filter press machine is an ideal equipment for solid-liquid separation in many industry, such as wastewater treatment, mining industry, chemical industry, food industry etc. The automatic function include automatic compression, automatic pressure keeping, automatic plate shifting, automatic cake discharging, automatic flip etc. Simple operation, high working efficiency.

Application

1, Chemical industry: Coating, paint, silica, caustic soda, soda ash, alkali, salt mud etc.



2, Food industry: Vegetable oil, starch sugar, plant sweet, beer yeast, rice wine, white wine, fruit juice, beverage, plant protein etc.



3, Sewage treatment Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment etc.



4, Pharmacy industry: Phytic acid, calcium, Chinese traditional medicine,organophosphate etc.



5, Metallurgy, coal industry: Gold, silver, copper, zinc ore mineral powder, etc



6, Other solid liquid separation industries.


 Specification



Model

Size of plate

(mm)

Filtering area(m2)

Quantity of filter plate

(pcs)

Thickness of filter cake(mm)

Filter

chamber volume (L)

Weight

(kg)

Dimension

(L*W*H)

(mm)

XMZG1000

1000*

1000

60

31

      35

1080

8080

4890*1560*1315

70

37

1250

8460

5325*1560*1315

80

43

1420

8880

5760*1560*1315

90

49

1590

9500

6190*1560*1315

100

55

1760

10200

6620*1560*1315

120

61

2100

10980

6910*1560*1315

XMZG1250

1250*1250

80

29

          38

1500

8318

4805*1750*1565

100

37

1910

8991

5420*1750*1565

120

45

2310

9641

6035*1750*1565



150

55


2810

10434

6805*1750*1565

160

59

3010

10751

7115*1750*1565

180

65

3410

11351

8302*1750*1565

*200

75

3820

12020

8345*1750*1565

*240

89

4520

13131

9425*1750*1565

*250

93

4720

13418

9725*1750*1565

XMZG1500

1500*1500

220

57

      40

4480

28220

7845*2360*1815

*250

65

5100

29375

8570*2360*1815

*300

77

6030

31275

9575*2360*1815

*350

91

7110

33440

10740*2360*1815

**400

103

8040

35465

11740*2360*1815
