Auto Membrane Filter Press

Automatic membrane filter press machine is widely used in solid liquid separation, high working efficiency, high automatic degree, the automatic function include automatic material feeding, automatic plate opening, automatic cake discharging, automatic quick plate opening system, shorter filtration cycle, and also can be add the automatic locking device, automatic cloth washing device automatic cloth shaking, etc. achieve full automatic operation, saving labor cost.

Features

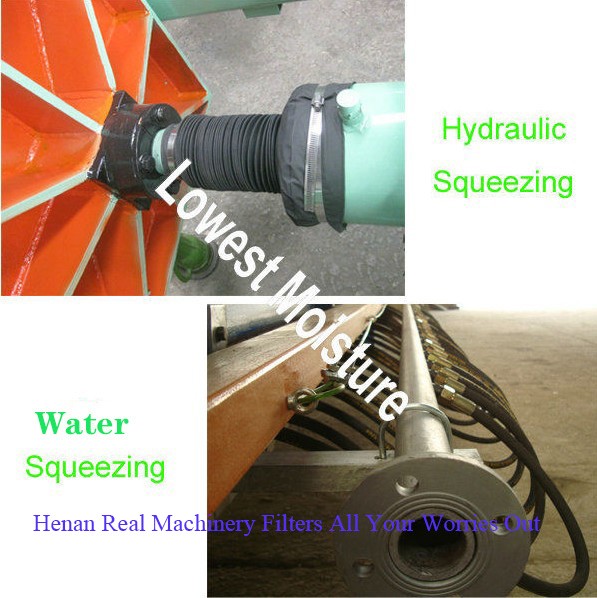

1High working pressure, the feeding pressure can be 4Mpa, the squeezing pressure range can be 1-10Mpa, more dry filter cake, 20-30% drier filter cake than other normal filter press.

2High automatic degress, the automatic function include automatic compression, automatic oil cylinder locking, automatic plate shifting, automatic cake discharging, automatic cloth washing etc, high efficiency, saving labor cost.

3Using the automatic cylinder locking, more safe and energy conservation.

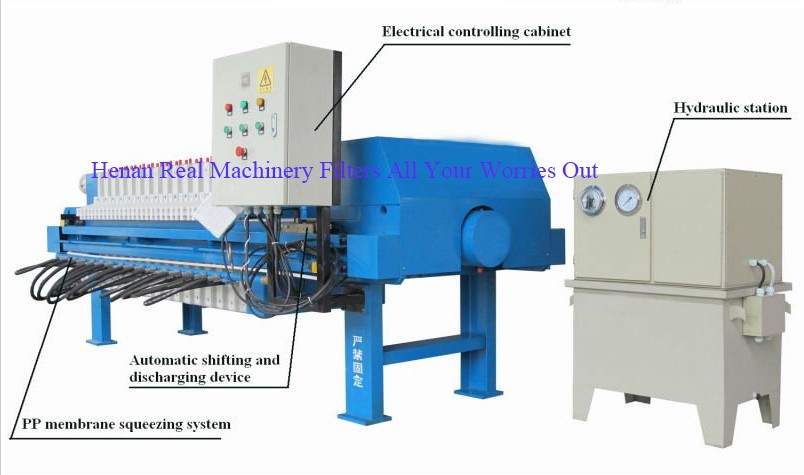

4The automatic hydraulic device of automatic membrane filter press machine is used for pressing and releasing the filter plate. The electrical contract pressure gauge is available to automatically maintain pressure by automatic locking device.

5Operation panel of automatic membrane filter press machine is easy and safe because of being equipped with multi con-figuration of PLC auto- control, relay control and safe device, which ensures safety to operators.

6The material of plate shifting device, chain wheel chute, etc. are stainless steel in case the reason of corrosion to make uneven shifting force and guarantee steady working.

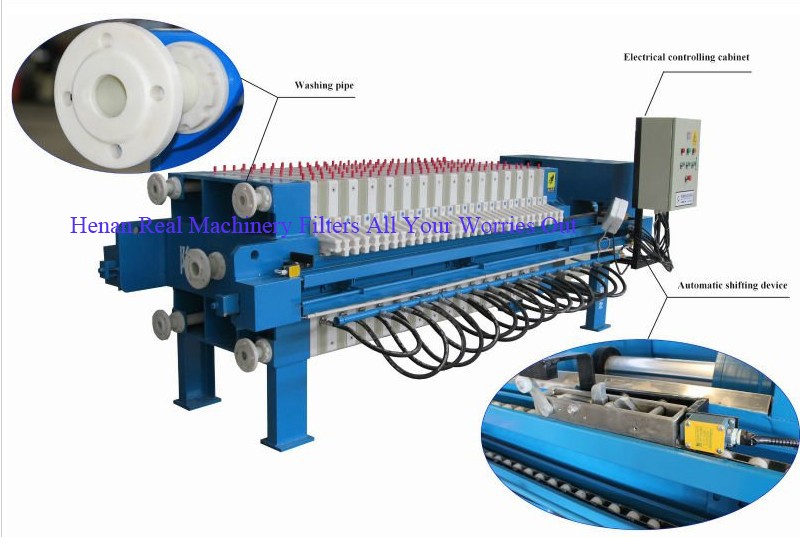

7Automatic plate shifting system of automatic membrane filter press machine is not only improve the efficiency of the filter and reduces the labor intensity, but also can reduce the filter caused by human factors board irregular arrangement.

8Automatic cloth washing system of automatic membrane filter press machine belongs to the supporting devices, installed on the main beam of filter press with automatic walking function, using high pressure water (pressure up to 10MPa) to washing cloth by switching valve, high efficiency, saving time.

9The main material of frame is carbon steel:Q235, beams with rectangular tube seamless welding, special frame deformation, strong and durable.

10Filter plates of automatic membrane filter press machine do not contain other filler. not recycled material, high strength, light weight, corrosion resistance, acid and alkali, non-toxic and tasteless.

11Various kinds of filter cloth of automatic membrane filter press machine which suit for different kinds of material, improving the filtering accuracy.

Introduction

High pressure membrane filter press machine is widely used in solid liquid separation, its feeding pressure can be 4Mpa, the squeezing pressure range can be 1-10Mpa,adjustable pressure, It has lower water content of filter cake and reduce water content by 20% - 30% under the same working condition. widely used in fields of coal washing, petroleum, chemical industry, dyeing ,metallurgy, medicine, food,textile, industrial sewage and urban domestic sewage treatment etc. For example, for tail coal processing, the moisture content of filter cake can be 13-16%, for municipal sludge industry, the moisture content of filter cake can reach 38% - 42% etc.

Application

1, Sewage treatment Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment etc.

2, Chemical industry: Coating, paint, silica, caustic soda, soda ash, alkali, salt mud (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor) etc.

3, Food industry: Vegetable oil, starch sugar, plant sweet, maltose, starch, maize, seaweed, kara glue, oral liquid, beer yeast, plant protein etc.

4, Pharmacy industry: Phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate etc.

5, Metallurgy, coal industry: Gold, silver, copper, zinc ore mineral powder, etc

6, Other solid liquid separation industries.
