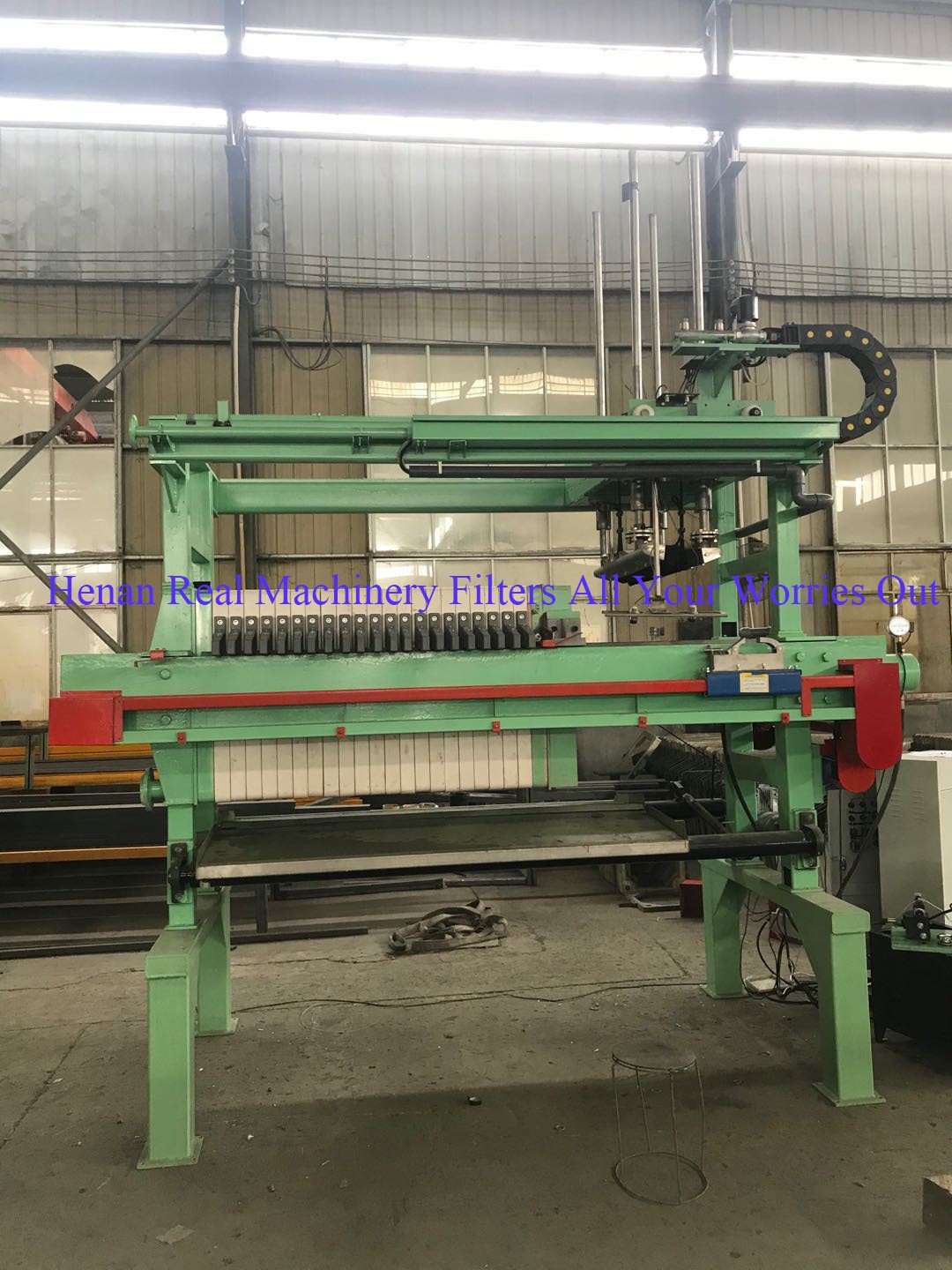

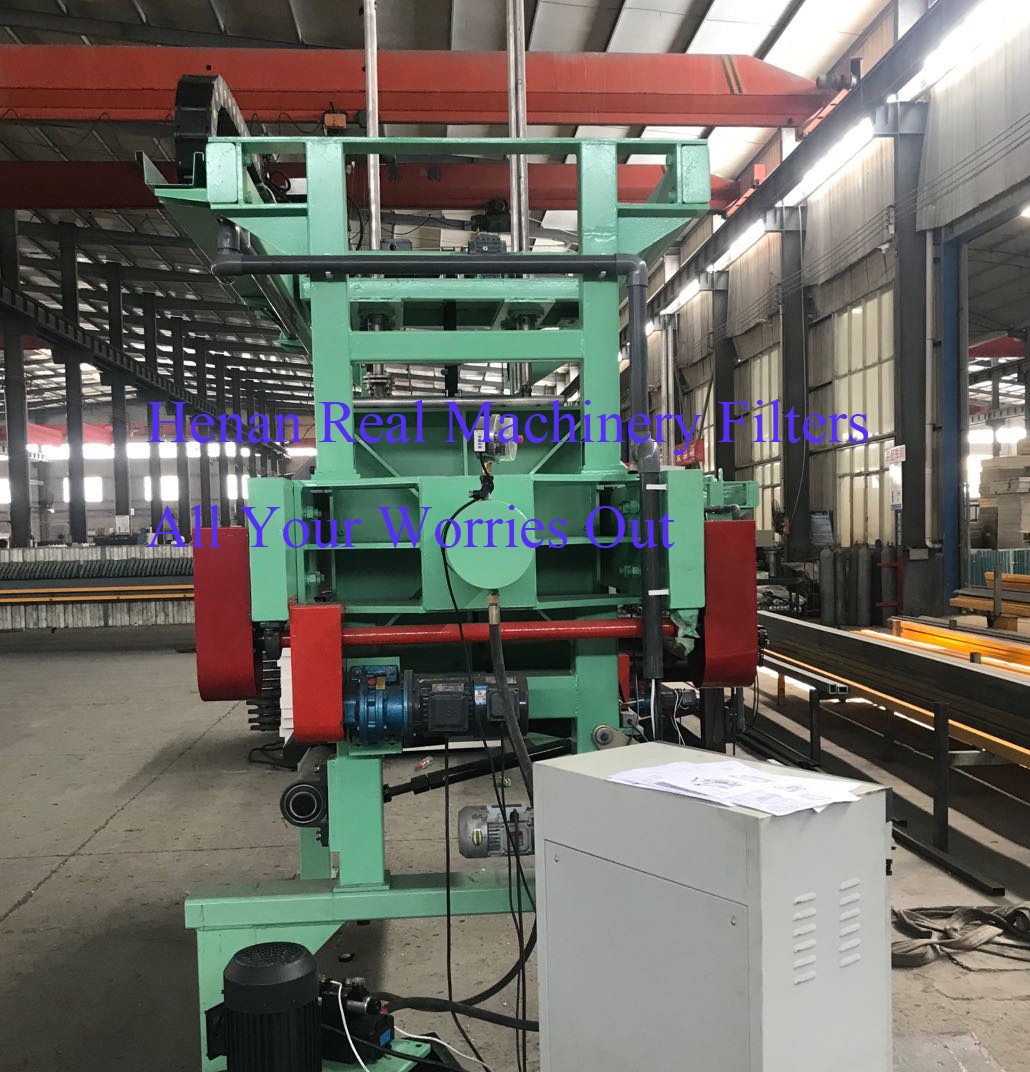

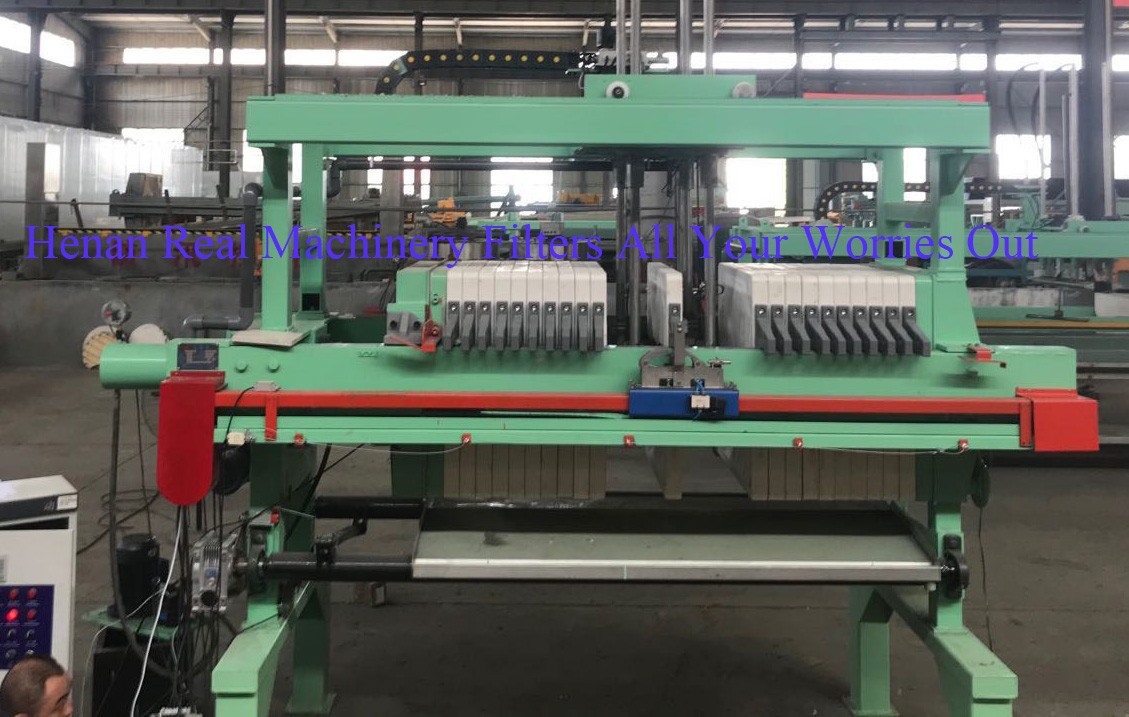

Customized Filter Press and Special Shaped Filter Press.

Customized Filter Press, Special Filter Press. Special Shaped Filter Press.
We can fullfill any requirements of the customers, once the clients need a customized filter press or a special filter press.

EMAIL

Features

Customized Filter Press, Special Filter Press.  Special Shaped Filter Press.

We can fullfill any requirements of the customers, once the clients need a customized filter press or a special filter press.


1Special design of dust protection cover of hydraulic rod and it is good for long term service time.


2The automatic hydraulic device is used for pressing and releasing the filter plate. The electrical contract pressure gauge is available to automatically maintain pressure.


3Operation panel is easy and safe because of being equipped with multi con-figuration of PLC auto- control, relay control and safe device, which ensures safety to operators.


4The material of plate shifting device, chain wheel chute, etc. are stainless steel in case the reason of corrosion to make uneven shifting force and guarantee steady working.


5Automatic plate shifting system is not only improve the efficiency of the filter and reduces the labor intensity, but also can reduce the filter caused by human factors board irregular arrangement.


6Automatic cloth washing system: It belongs to the supporting devices, installed on the main beam of filter press with automatic walking function, using high pressure water (pressure up to 10MPa) to washing cloth by switching valve, high efficiency, saving time.


7The main material of frame is carbon steel:Q235, beams with rectangular tube seamless welding, special frame deformation, strong and durable.


8Filter plates do not contain other filler. not recycled material, high strength, light weight, corrosion resistance, acid and alkali, non-toxic and tasteless.


9Various kinds of filter cloth which suit for different kinds of material, improving the filtering accuracy.


10Adding the cake conveyor, can cake conveying automatically after cake discharging.


Advantages

1The membrane filter press has secondary pressing on filter cake, the squeezing pressure can be 0.8Mpa, have a 5% -10% drier filter cake than chamber filter press.


2Automatic cloth washing system solve the filter cloth washing problems such as differcult , often change the filter cloth, at the same time , save labor , save water resources , reduces the filter washing time To make it stronger filter cloth water permeability , improve the filtering speed , prolonged the service life of filter cloth .


Application

1Chemical industry:Coating, paint, silica, caustic soda, soda ash, alkali, salt mud (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor) etc.


2Sewage treatment: Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment etc.


3Pharmacy industry:Phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate etc.


4Metallurgy, coal industry:Gold, silver, copper, zinc ore mineral powder, etc


5Other solid liquid separation industries.


Automatic function

Automatic compression


Automatic pressure keeping


Automatic plate shiffting


Automatic cake discharging


Automatic Liquid collection


Automatic cloth washing


Automatic drip tray close when cloth washing and filtrating, automatic open when cake discharging.


Introduction

This machine adopts international advanced TPE membrane technology, so that ensure stable performance and long life-span, and widely used for various industries.


Cakes from membrane filter press can be secondarily squeezed under max 1.6 MPa by water to realize the lowest cake residual moisture. In some wastewater treatment industries, the final cake can be used for landfil or burning directly.


The membrane filter press can realize fully automatic operation with flexible devices, such as belt conveyor, drip tray, workbench etc..


Specification



 Specification



Model

Size of plate

(mm)

Filtering area(m2)

Quantity of filter plate

(pcs)

Thickness of filter cake(mm)

Filter

chamber volume (L)

Weight

(kg)

Dimension

(L*W*H)

(mm)

XMZG1000

1000*

1000

60

31

      35

1080

8080

4890*1560*1315

70

37

1250

8460

5325*1560*1315

80

43

1420

8880

5760*1560*1315

90

49

1590

9500

6190*1560*1315

100

55

1760

10200

6620*1560*1315

120

61

2100

10980

6910*1560*1315

XMZG1250

1250*1250

80

29

          38

1500

8318

4805*1750*1565

100

37

1910

8991

5420*1750*1565

120

45

2310

9641

6035*1750*1565



150

55


2810

10434

6805*1750*1565

160

59

3010

10751

7115*1750*1565

180

65

3410

11351

8302*1750*1565

*200

75

3820

12020

8345*1750*1565

*240

89

4520

13131

9425*1750*1565

*250

93

4720

13418

9725*1750*1565

XMZG1500

1500*1500

220

57

      40

4480

28220

7845*2360*1815

*250

65

5100

29375

8570*2360*1815

*300

77

6030

31275

9575*2360*1815

*350

91

7110

33440

10740*2360*1815

**400

103

8040

35465

11740*2360*1815
