Full Auto Cloth-Washing Membrane Filter Press

Features

1Special design of dust protection cover of hydraulic rod and it is good for long term service time.

2The automatic hydraulic device is used for pressing and releasing the filter plate. The electrical contract pressure gauge is available to automatically maintain pressure.

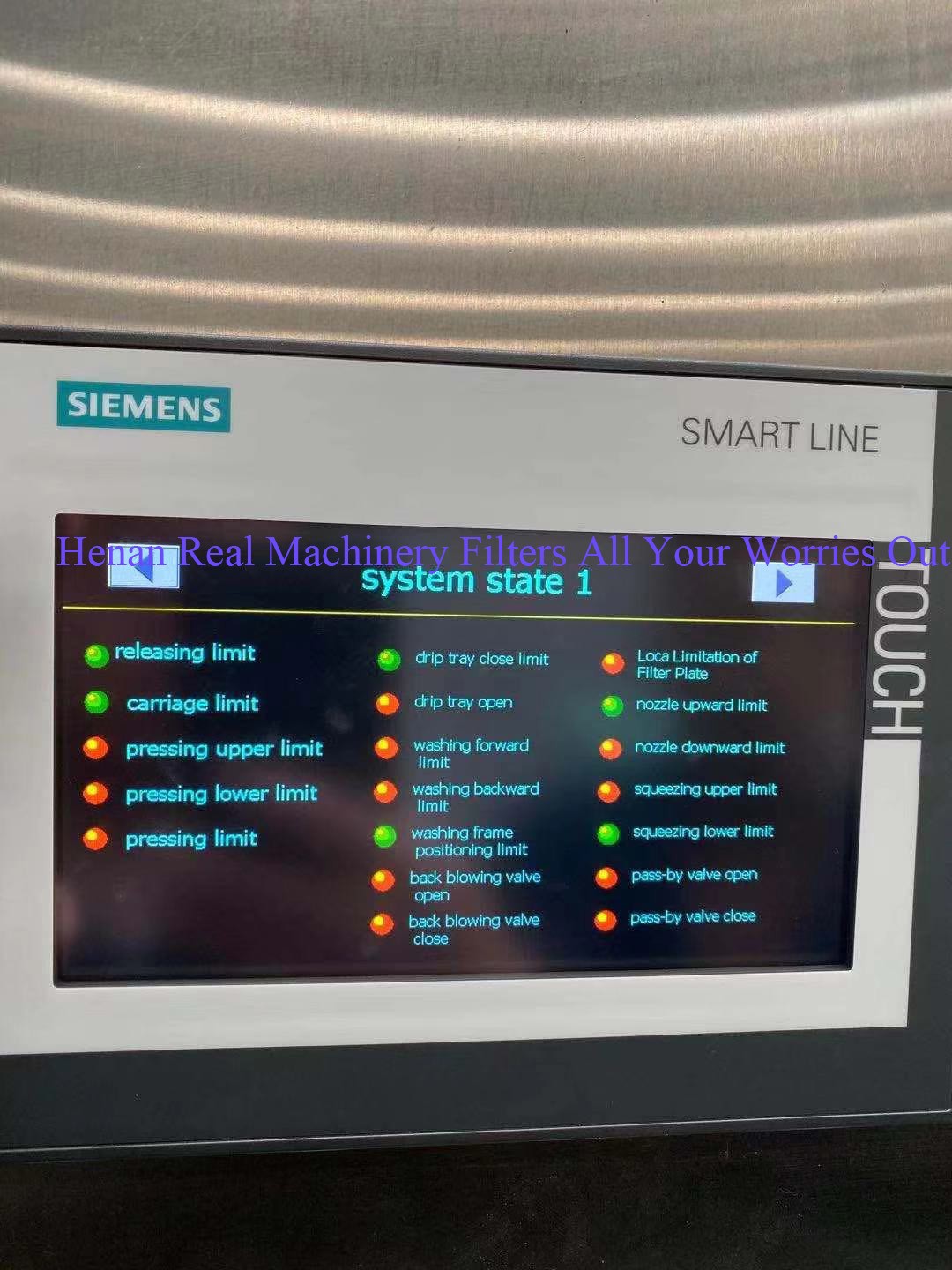

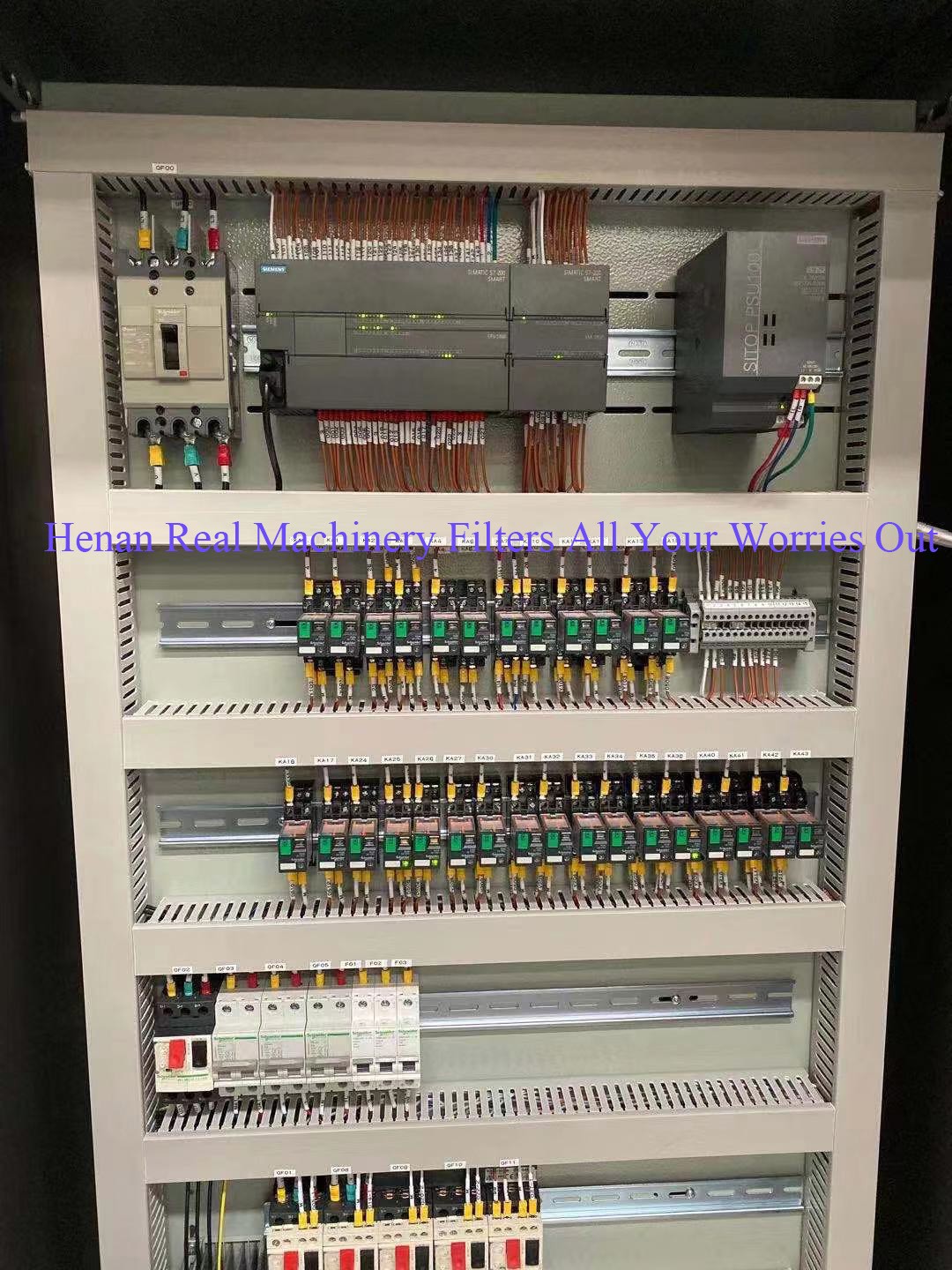

3Operation panel is easy and safe because of being equipped with multi con-figuration of PLC auto- control, relay control and safe device, which ensures safety to operators.

4The material of plate shifting device, chain wheel chute, etc. are stainless steel in case the reason of corrosion to make uneven shifting force and guarantee steady working.

5Automatic plate shifting system is not only improve the efficiency of the filter and reduces the labor intensity, but also can reduce the filter caused by human factors board irregular arrangement.

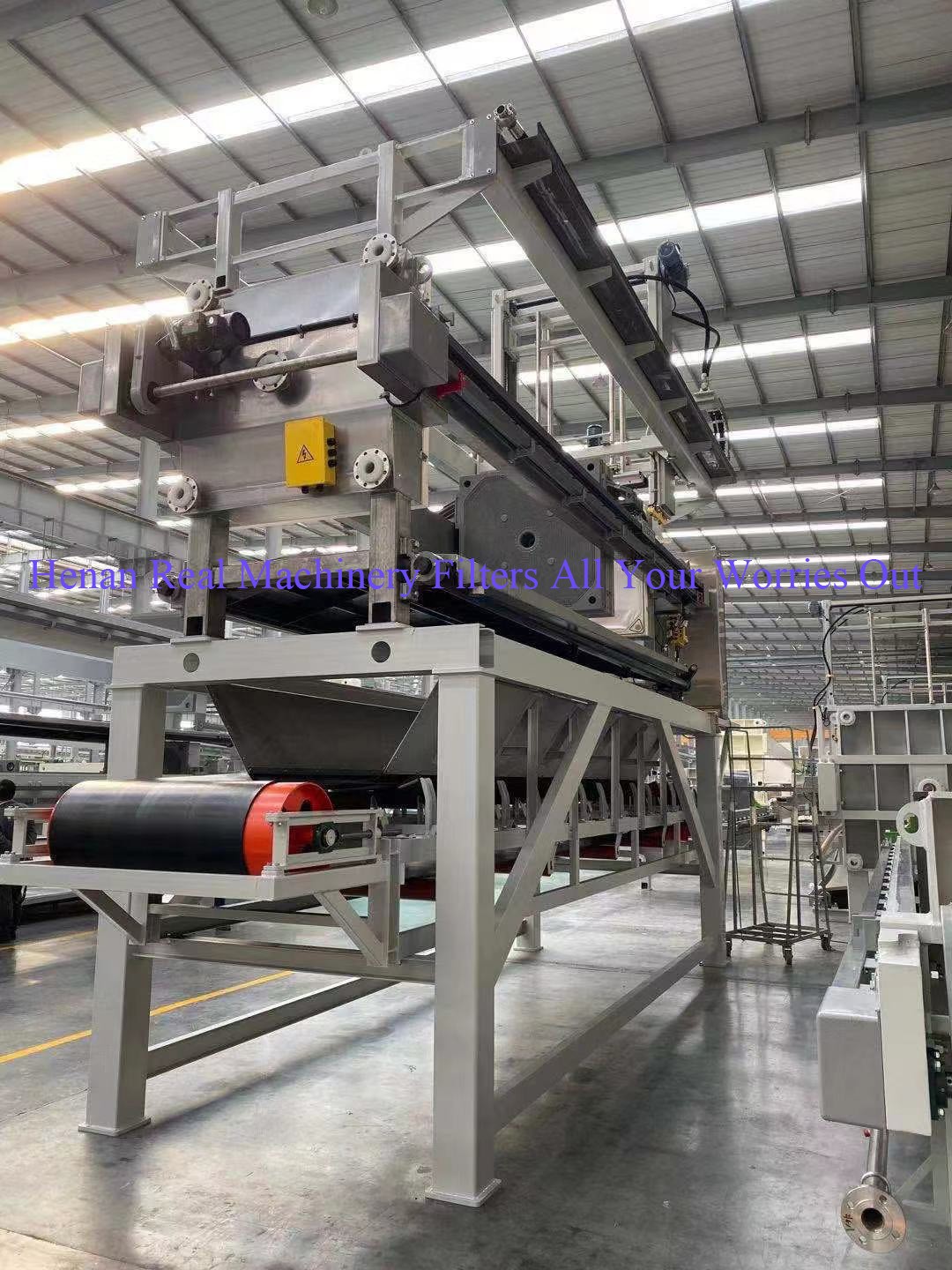

6Automatic cloth washing system: It belongs to the supporting devices, installed on the main beam of filter press with automatic walking function, using high pressure water (pressure up to 10MPa) to washing cloth by switching valve, high efficiency, saving time.

7The main material of frame is carbon steel:Q235, beams with rectangular tube seamless welding, special frame deformation, strong and durable.

8Filter plates do not contain other filler. not recycled material, high strength, light weight, corrosion resistance, acid and alkali, non-toxic and tasteless.

9Various kinds of filter cloth which suit for different kinds of material, improving the filtering accuracy.

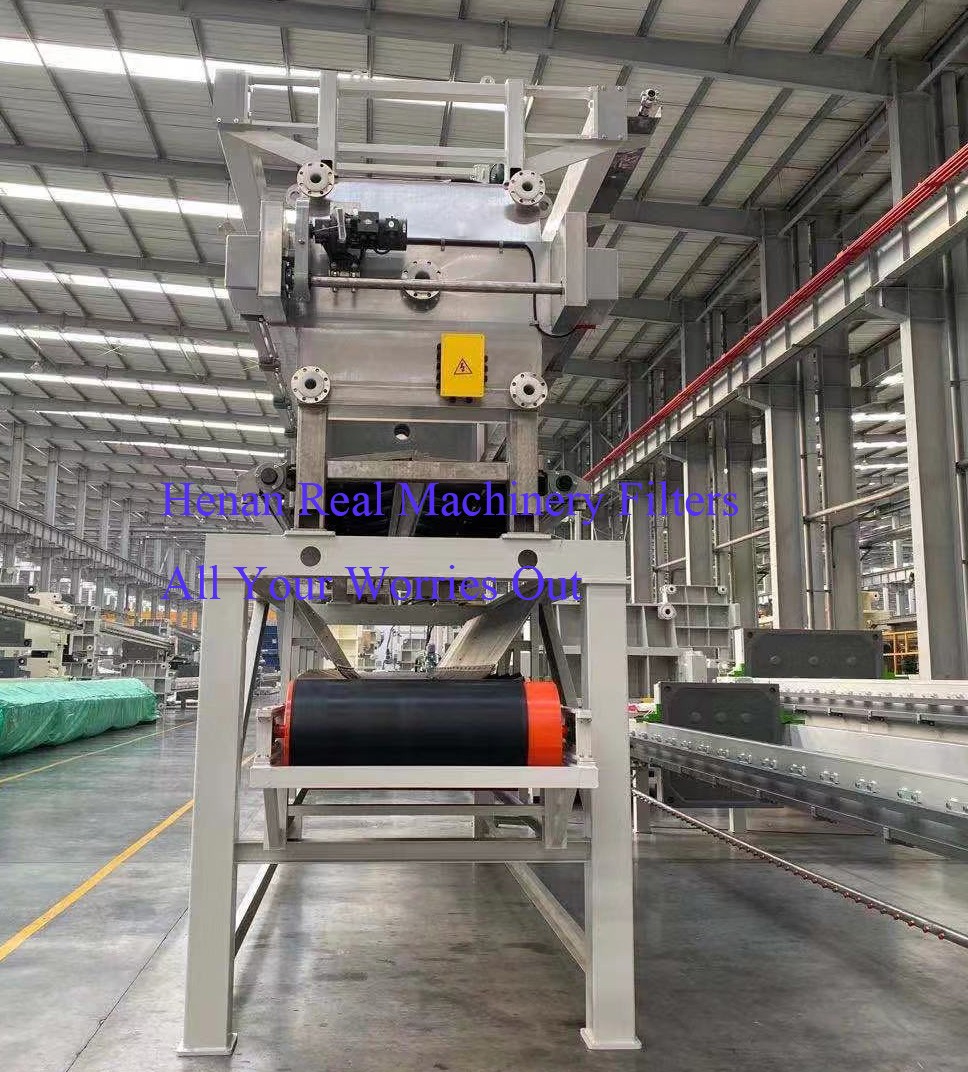

10Adding the cake conveyor, can cake conveying automatically after cake discharging.

Advantages

1The membrane filter press has secondary pressing on filter cake, the squeezing pressure can be 0.8Mpa, have a 5% -10% drier filter cake than chamber filter press.

2Automatic cloth washing system solve the filter cloth washing problems such as differcult , often change the filter cloth, at the same time , save labor , save water resources , reduces the filter washing time To make it stronger filter cloth water permeability , improve the filtering speed , prolonged the service life of filter cloth .

Application

1Chemical industry:Coating, paint, silica, caustic soda, soda ash, alkali, salt mud (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor) etc.

2Sewage treatment: Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment etc.

3Pharmacy industry:Phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate etc.

4Metallurgy, coal industry:Gold, silver, copper, zinc ore mineral powder, etc

5Other solid liquid separation industries.

Automatic function

Automatic compression

Automatic pressure keeping

Automatic plate shiffting

Automatic cake discharging

Automatic Liquid collection

Automatic cloth washing

Automatic drip tray close when cloth washing and filtrating, automatic open when cake discharging.

Introduction

This machine adopts international advanced TPE membrane technology, so that ensure stable performance and long life-span, and widely used for various industries.

Cakes from membrane filter press can be secondarily squeezed under max 1.6 MPa by water to realize the lowest cake residual moisture. In some wastewater treatment industries, the final cake can be used for landfil or burning directly.

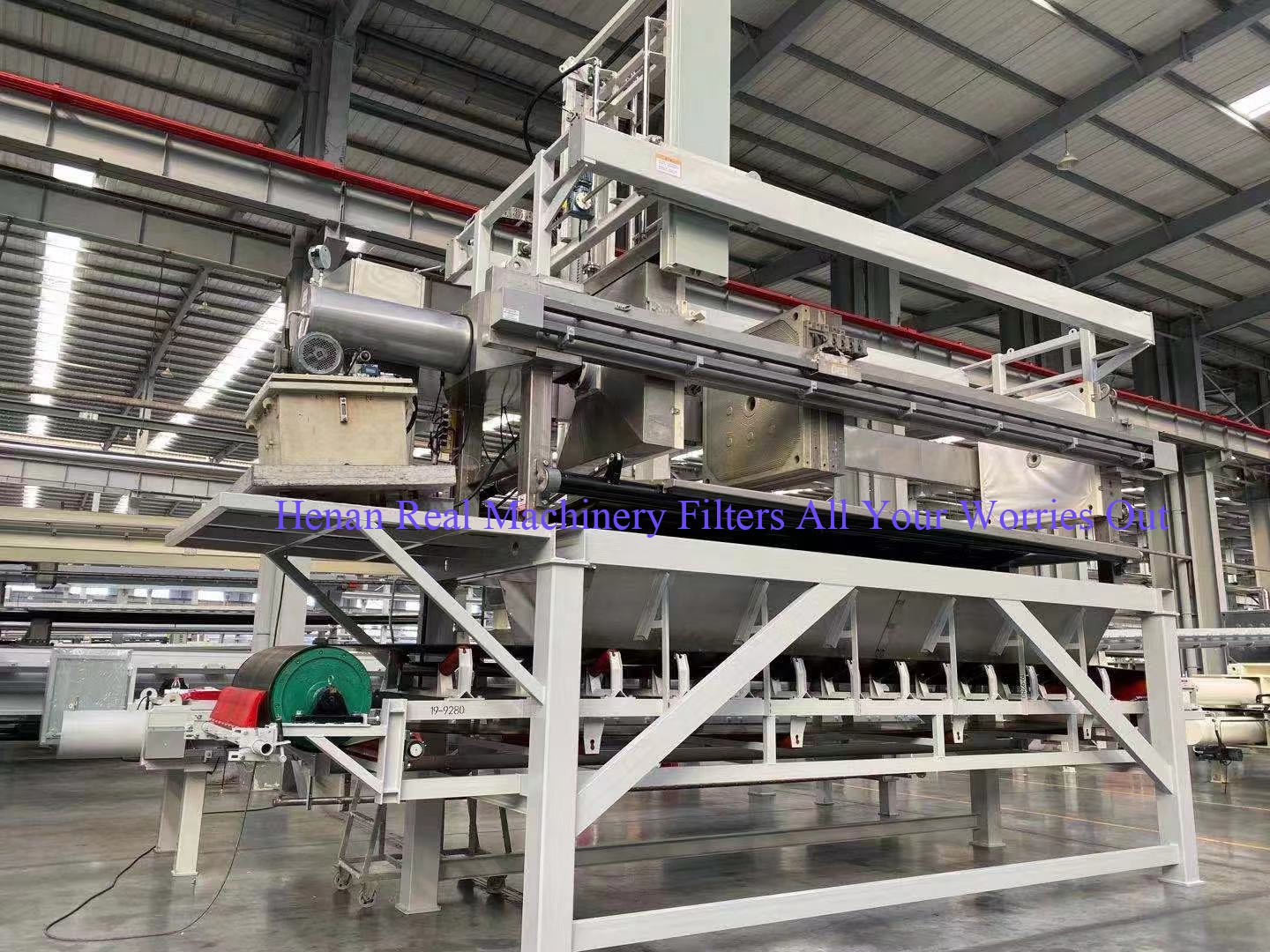

The membrane filter press can realize fully automatic operation with flexible devices, such as belt conveyor, drip tray, workbench etc..

Specification

 Specification：
